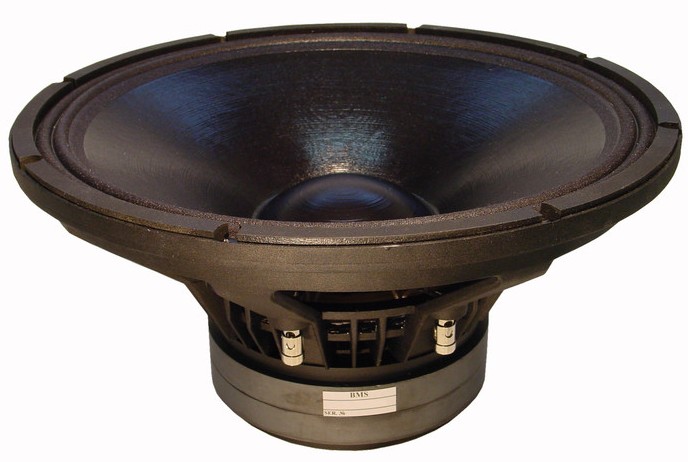

BMS 15S330

в наличност в наличност
BMS 15S330

BMS 15S330

Specification

Application Subwoofer
Nominal Impendance:Ohm8
Power handling AES noise:W600
Sensitivity (1 W / 1 m):dB98

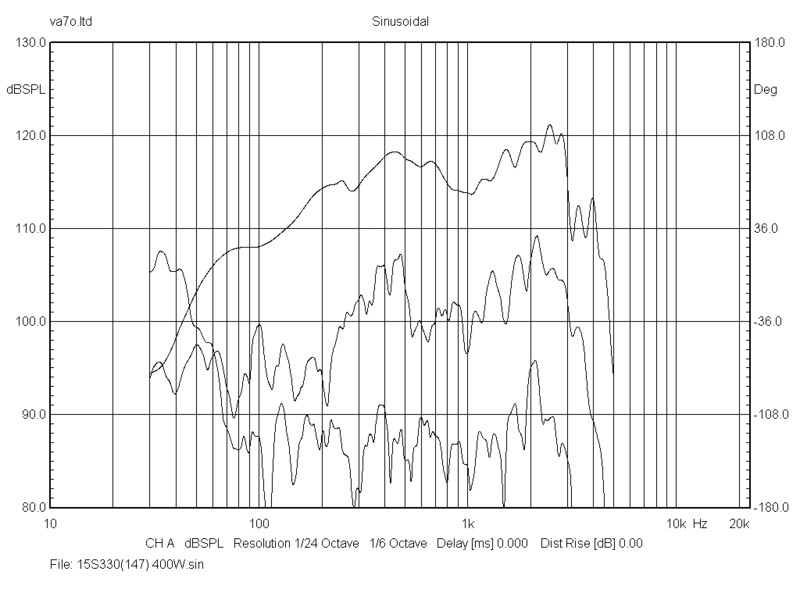

Frequency response:Hz35 - 2500
Voice Coil Diameter:mm77 (3")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm26
Magnet Gap Depth:mm10
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm335

Recommended reflex enclosure:
80 L / 45 Hz, -3 dB = 49 Hz, BRD = 140 mm / 175 mm long



Thiele-Small Parameters

Resonance Frequency:FsHz39
DC Resistance:ReOhm6
Mechanical Q Factor:Qms 6.6
Electrical Q Factor:Qes 0.34
Total Quality Factor:Qts 0.32
Equivalent Volume:VasL152
Moving Mass:Mmskg0.121
Mechanical Complience:Cmsmm / N0.14
BL Factor:BLTesla m23
Effective Piston Area:Sdm²0.088
Max. linear Excursion:Xmaxmm+/- 8
Voice Coil Inductance:Le1kmH0.72
 Le10kmH0.45

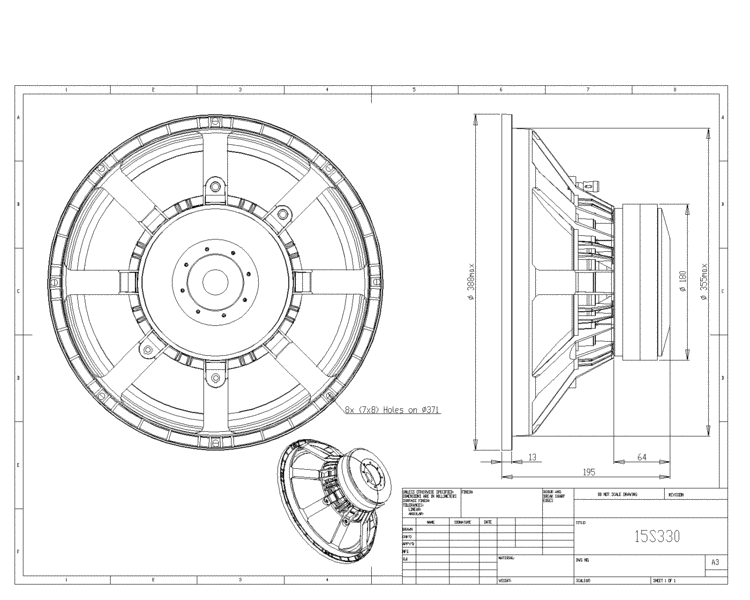

Mounting Information

Overall Diameter:mm388
Mounting Holes Diameter:mm8 x (7 x 8)
Bolt Circle Diameter:mm371
Baffle cut-out Diameter:mm358
Overall depth:mm195
Net Weight:kg9.6
