BMS 15S420

BMS 15S420

15S420 SPECIFICATION

Application Compact 2- or 3-way
Nominal Impendance:Ohm8
Power handling AES noise:W900
Sensitivity (1 W / 1 m):dB98

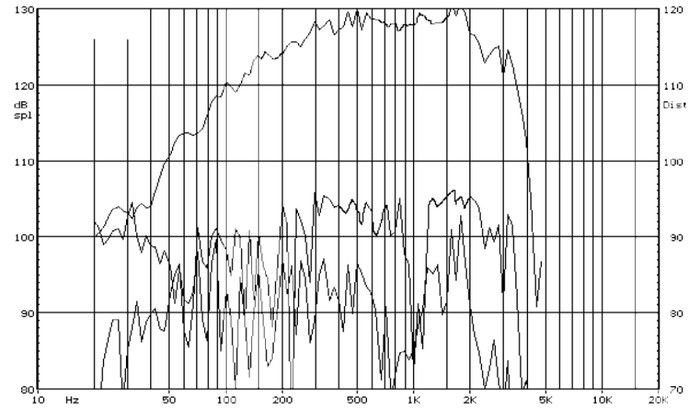

Frequency response:Hz40 - 2500
Voice Coil Diameter:mm101.6 (4")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm20
Magnet Gap Depth:mm10
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm335

Recommended reflex enclosure:
50 L / 54 Hz, -3 dB = 63 Hz, BRD = 120 mm / 137 mm long
65 L / 49 Hz, -3 dB = 57 Hz, BRD = 130 mm / 153 mm long

15S420 THIELE-SMALL PARAMETERS

Resonance Frequency:FsHz39.8
DC Resistance:ReOhm5.90
Mechanical Q Factor:Qms 4.96
Electrical Q Factor:Qes 0.26
Total Quality Factor:Qts 0.25
Equivalent Volume:VasL152
Moving Mass:Mmskg0.114
Mechanical Complience:Cmsmm / N0.140
BL Factor:BLTesla m25.50
Effective Piston Area:Sd0.0880
Max. linear Excursion:Xmaxmm+/- 5
Voice Coil Inductance:Le1kmH1.54
 Le10kmH0.63

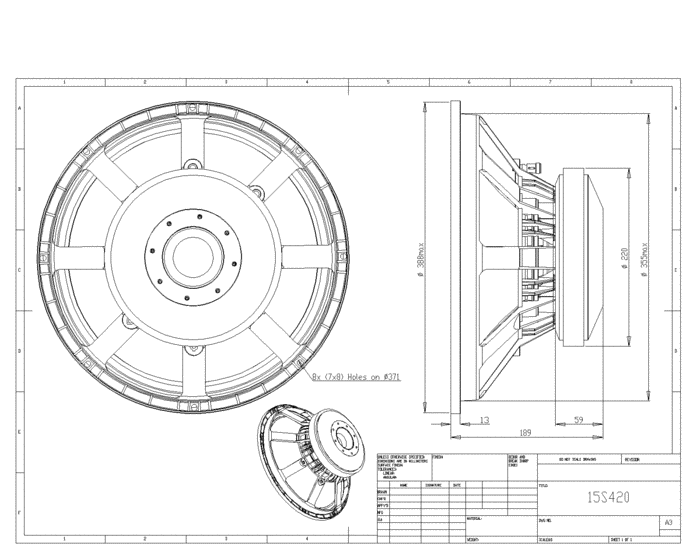

15S420 MOUNTING INFORMATION

Overall Diameter:mm388
Mounting Holes Diameter:mm8 x (7 x 8)
Bolt Circle Diameter:mm371
Baffle cut-out Diameter:mm358
Overall depth:mm182
Net Weight:kg10.7



отвори галерията на BMS 15S420BMS 15S420
отвори галерията на BMS 15S420BMS 15S420
Цена: 480.00 лв.
400.00 лв. без ДДС
в наличност в наличност
